C3129 Conical diamond enhanced compact
Video
The C3219 Conical Diamond Enhanced Compact is a high-performance PDC cutter engineered for demanding drilling applications in oil & gas, water well, mining, geothermal, and foundation drilling industries. Featuring an optimized conical profile and advanced diamond-enhanced structure, this cutter delivers exceptional rock-breaking efficiency, superior impact resistance, and extended service life in challenging formations.
Parameter Table
|
Model NO. |
C3219 |
Length |
Standard |
|
Type |
PDC Cutter/Insert/Button |
Material |
Tungsten Carbide |
|
Usage |
Well Drilling, Oilfield,Gas Field,Mining Industry,Construction |
Wear Resistance |
Super High |
|
Thermal Stability |
750℃,800℃,850℃,900℃ |
Production Process |
Hthp Sintering |
|
Diamond Grade |
PCD |
Substrate Material |
Tungsten Carbide |
|
Total Height |
5~34 |
Tolerance |
±0.02mm |
|
Impact Toughness |
Excellent |
Certification |
ISO 9001 |
|
Shape |
Round |
Matched Drill Bit |
PDC Drill Bits, Core Bits, Tricone Bits, Drill Pipes (We also offer custom drill bit manufacturing) |
|
MOQ |
100PCS |
Specification |
3219 |
|
Transport Package |
Customized, Carton/Wooden Case |
Origin |
China |
|
Trademark |
Ninestones |
Production Capacity |
10000pieces/Year |
Applicable Strata
The C3219 Conical Diamond Enhanced Compact is suitable for:
- Medium-hard sandstone
- Hard sandstone
- Limestone
- Dolomite
- Granite with interbedded formations
- Quartz-rich abrasive formations
- Shale and compacted mudstone
- Conglomerates
- Deep well and high-temperature formations
Its conical cutting structure helps maintain cutting efficiency even when encountering formation transitions and impact loads.
Core Product Advantages
Outstanding Compressive Strength
The reinforced conical geometry distributes drilling loads more efficiently, enabling the cutter to withstand extremely high compressive forces encountered in deep and hard-rock drilling operations.
Superior Impact Resistance
The diamond-enhanced structure and optimized stress distribution significantly reduce edge chipping and fracture risks caused by vibration and formation discontinuities.
Exceptional Wear Resistance
Premium-grade synthetic diamond materials provide long-lasting abrasion resistance, helping maintain cutter sharpness throughout extended drilling cycles.
Excellent High-Temperature Stability
Manufactured using advanced high-pressure high-temperature (HPHT) technology, the C3219 maintains structural integrity and cutting performance under elevated downhole temperatures.
Higher Rate of Penetration (ROP)
The conical profile concentrates cutting energy at the contact point, improving rock fragmentation efficiency and increasing drilling speed.
Extended Bit Service Life
Reduced wear, improved thermal stability, and enhanced impact resistance contribute to longer bit runs and lower replacement frequency, reducing overall drilling costs.
Precise Size Specifications
The C3219 cutter features a nominal diameter of 32 mm with a diamond table thickness optimized for demanding drilling environments. Its precision-engineered conical profile enhances force concentration during rock engagement while maintaining excellent structural stability. Dimensional tolerances are tightly controlled to ensure consistent performance and compatibility with a wide range of drill bit designs.

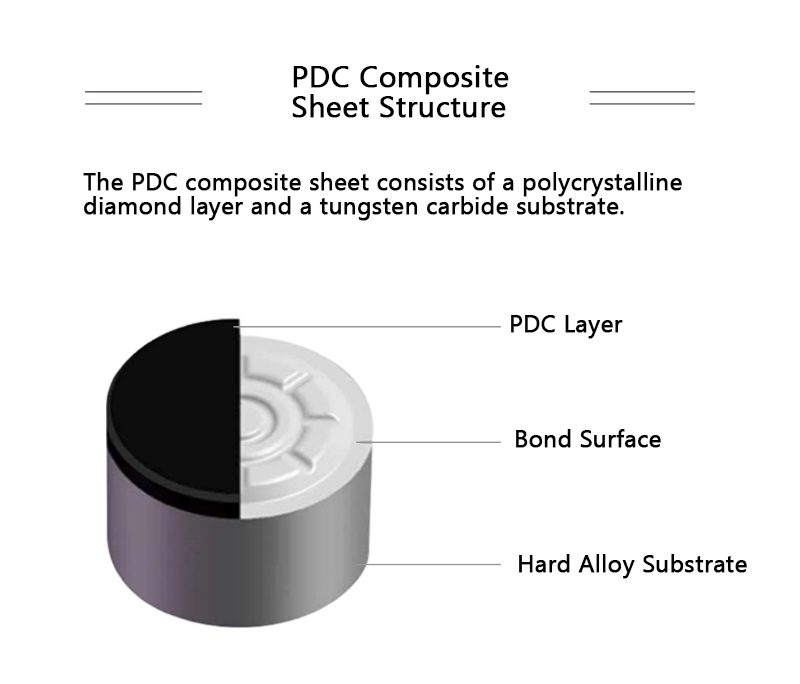

Material and Core Technology
Manufactured using high-quality synthetic diamond powders that provide outstanding hardness, wear resistance, and cutting efficiency.
Produced under carefully controlled ultra-high pressure and high-temperature conditions to achieve strong diamond-to-substrate bonding and superior mechanical properties.
The optimized conical geometry improves stress distribution, enhances impact resistance, and increases rock-breaking efficiency in hard and abrasive formations.
Application Field
Oil & Gas Drilling
Suitable for shallow to medium-deep well operations on land. Works well in tight sandstone, interbedded strata and gravel-bearing formations. High temperature resistance avoids carbonization and delamination, reducing bit replacement and overall drilling cost.
Mining Drilling & Exploration
Ideal for mineral prospecting, tunnel drilling and mine water well projects. Perfect for high-abrasive hard rock such as granite and quartzite. Excellent impact resistance prevents edge chipping, serving longer life in fractured mining formations.
Geological Exploration & Sampling
High dimensional accuracy ensures stable drilling and regular borehole. Guarantees complete formation core sampling, fully meeting high-precision geological survey and resource exploration requirements.
Water Well & Infrastructure Engineering
Widely used in deep water wells, pile foundation drilling and construction projects. Efficient penetration in common rock layers, low wear and stable performance for long-time continuous site operation.
Universal Bit Matching
Compatible with mainstream PDC bits, core bits and drilling tools with good interchangeability. Custom sizes and chamfers are available to meet non-standard matching demands for different projects.
Customized Service
At Ninestones Superabrasives, we understand that every drilling project has unique requirements. We offer comprehensive customization services including:
- Customized cutter dimensions
- Diamond table thickness options
- Specialized conical geometries
- Enhanced wear-resistant grades
- High-impact resistance designs
- OEM and ODM manufacturing
- Customized packaging and branding
- Technical application support
Our engineering team works closely with customers to develop solutions optimized for specific drilling environments and operational objectives.

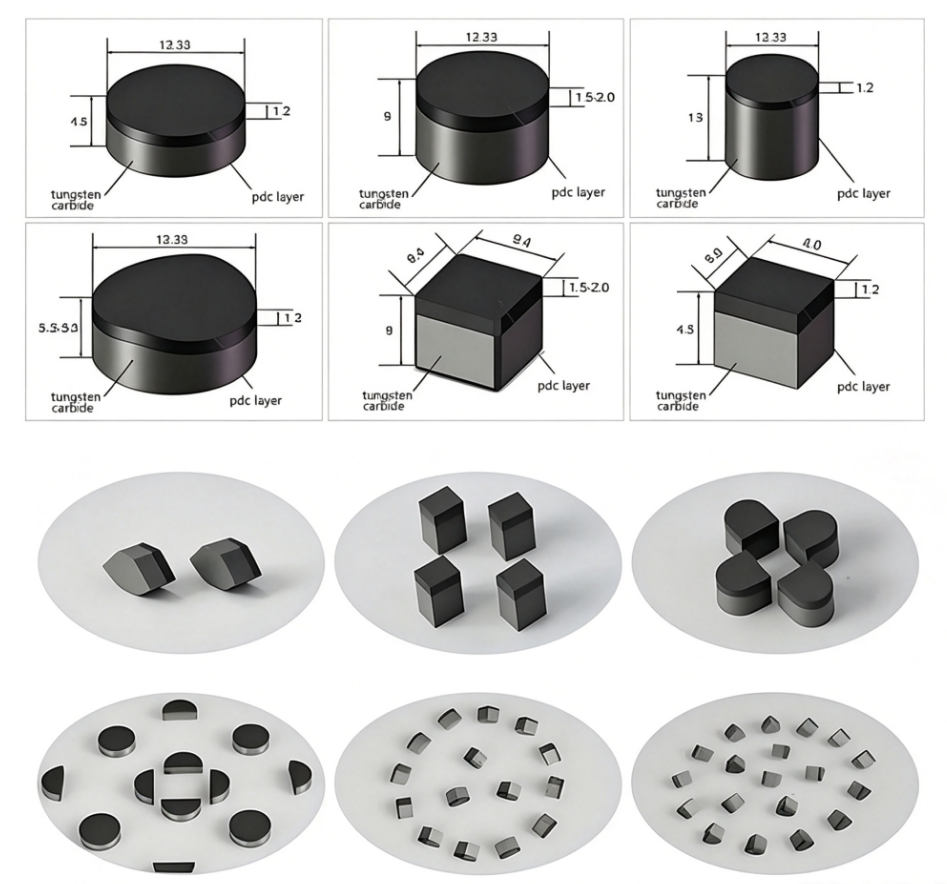

| Product Model | Diameter | Height | Radius of Dome | Exposed Height |
| C0606 | 6.421 | 6.350 | 2 | 2.4 |
| C0609 | 6.400 | 9.300 | 1.5 | 3.3 |
| C1114 | 11.176 | 13.716 | 2.0 | 5.5 |
| C1210 | 12.000 | 10.000 | 2.0 | 6.0 |
| C1214 | 12.000 | 14.500 | 2 | 6 |
| C1217 | 12.000 | 17.000 | 2.0 | 6.0 |
| C1218 | 12.000 | 18.000 | 2.0 | 6.0 |
| C1310 | 13.700 | 9.855 | 2.3 | 6.4 |
| C1313 | 13.440 | 13.200 | 2 | 6.5 |
| C1315 | 13.440 | 15.000 | 2.0 | 6.5 |
| C1316 | 13.440 | 16.500 | 2 | 6.5 |
| C1317 | 13.440 | 17.050 | 2 | 6.5 |
| C1318 | 13.440 | 18.000 | 2.0 | 6.5 |
| C1319 | 13.440 | 19.050 | 2.0 | 6.5 |
| C1420 | 14.300 | 20.000 | 2 | 6.5 |
| C1421 | 14.870 | 21.000 | 2.0 | 6.2 |
| C1621 | 15.880 | 21.000 | 2.0 | 7.9 |
| C1925 | 19.050 | 25.400 | 2.0 | 9.8 |
| C2525 | 25.400 | 25.400 | 2.0 | 10.9 |
| C3028 | 29.900 | 28.000 | 3 | 14.6 |
| C3129 | 30.500 | 28.500 | 3.0 | 14.6 |
Customer Reviews
Mark Wilson | Oilfield Drilling Project Manager
We have been using their 16mm PDC cutters for a long time. They perform steadily in hard formations with much better wear resistance than other brands. Cutter chipping is greatly reduced, which effectively cuts down our overall drilling cost. Highly reliable for long-term cooperation.
Carlos Rodriguez | Mining Drilling Engineer
Our working conditions are tough with granite and fractured formations. These PDC cutters have excellent impact resistance and longer service life. The dimension accuracy is perfect, fits our drill bits very well without repeated adjustment.
David Brown | Infrastructure & Water Well Contractor
Great customization service for non-standard sizes and special chamfers. Delivery is always on time. The cutters hold up well under continuous high-intensity site operation, fast penetration and low consumption, fully matching our construction schedule.
Packaging
To ensure safe international transportation, all C3219 cutters are packaged using export-grade protective materials:
- Individual protective slots or trays
- Anti-collision foam protection
- Moisture-resistant packaging
- Heavy-duty export cartons
- Wooden crate packaging available upon request
- Customized labels and OEM packaging options
Each shipment undergoes strict quality inspection before delivery to guarantee product integrity upon arrival.
Delivery
Sample and bulk orders are acceptable. We support express, air freight and sea freight. Sufficient production capacity ensures stable lead time, safe and on-time delivery worldwide.
FAQ
Q: Where is 13mm PDC cutter commonly used?
A: It is widely used for small diameter drill bits, water well rigs and exploration tools. Ideal for shallow and medium wells, medium-hard rock and fractured formations.
Q: How to choose between 13mm and 16mm PDC cutter?
A: Choose 13mm for small diameter bits, light rigs and shallow water wells. Choose 16mm for hard rock, high penetration and medium-deep heavy-duty drilling.
Q: What about the wear and impact resistance of 13mm model?
A: Made of high-grade PCD layer and tungsten carbide base. Great wear resistance and anti-chipping performance, lower consumption in shale, sandstone and limestone.
Q: Is the 13mm standard size universal for replacement?
A: Strict tolerance within ±0.02mm, fully compatible with mainstream 13 series PDC drill bits, direct replacement available.
Q: Can 13mm PDC cutter be customized?
A: Custom PCD thickness, chamfer and angle are available. We can also adjust size to match special drill bits and complex formation requirements.
