S0808 polycrystalline diamond composite sheet
Video
The 8mm flat face PDC cutter (model 0808) is a compact and high-strength polycrystalline diamond compact. It is manufactured by sintering a precision polycrystalline diamond layer on a cemented carbide substrate through high-temperature and high-pressure processes. Featuring a standard size of 8mm in diameter and 8mm in total height with a flat cutting structure, it is specially designed for small-sized drill bits, core drill bits and bits with dense cutter layout. With stable shearing performance, excellent heat dissipation and reliable durability, this cutter is perfectly adapted to soft and medium-soft formations, serving as a high-cost-performance core component for PDC drill bits.
Parameter Table
|
Model NO. |
S0808 |
Length |
Standard |
|
Type |
PDC Cutter/Insert/Button |
Material |
Tungsten Carbide |
|
Usage |
Well Drilling, Oilfield,Gas Field,Mining Industry,Construction |
Wear Resistance |
Super High |
|
Thermal Stability |
750℃,800℃,850℃,900℃ |
Production Process |
Hthp Sintering |
|
Diamond Grade |
PCD |
Substrate Material |
Tungsten Carbide |
|
Total Height |
5~34 |
Tolerance |
±0.02mm |
|
Impact Toughness |
Excellent |
Certification |
ISO 9001 |
|
Shape |
Round |
Matched Drill Bit |
PDC Drill Bits, Core Bits, Tricone Bits, Drill Pipes (We also offer custom drill bit manufacturing) |
|
MOQ |
100PCS |
Specification |
0808 |
|
Transport Package |
Customized, Carton/Wooden Case |
Origin |
China |
|
Trademark |
Ninestones |
Production Capacity |
10000pieces/Year |
Applicable Strata
- Soft Formations: Clay, mudstone, soft sandstone, lignite (compressive strength ＜10,000 psi)
- Medium-Soft Formations: Tight sandstone, siltstone, shale (10,000–15,000 psi)
- Interbedded Formations: Alternating soft and hard rock layers with low to moderate abrasiveness
- Shallow & Medium-Deep Wells: Suitable for conventional downhole working conditions requiring fast drilling efficiency
Core Product Advantages
Compact Structure & Strong Compatibility
High Temperature Resistance & Performance Anti-attenuation
Precise Size Specifications
This 8mm flat face PDC cutter adopts high-precision standardized dimensional design. The standard finished product has a diameter of 8.0±0.05mm and a total height of 8.0±0.1mm, with a standard diamond layer thickness of 1.5±0.05mm, and customized diamond layer thicknesses of 1.0mm and 2.0mm are available on request. It adopts refined chamfering technology overall, with a 0.4mm×45° chamfer on the diamond end face and a 0.76mm×45° chamfer on the cemented carbide substrate. All dimensional tolerances are strictly controlled, which is highly compatible with various standard and customized small-sized PDC drill bits, featuring high fitting accuracy and universal applicability.
Material and Core Technology
Sintered under the extreme environment of 5–6GPa pressure and temperature above 1500℃, the diamond layer and carbide substrate are tightly combined into an integrated structure, avoiding delamination and falling off in long-term service.
CNC precision grinding ensures ultra-high dimensional accuracy and smooth surface finish. The optimized chamfer design disperses internal stress concentration and effectively reduces the risk of edge chipping.
Application Field
Oil & Gas Drilling

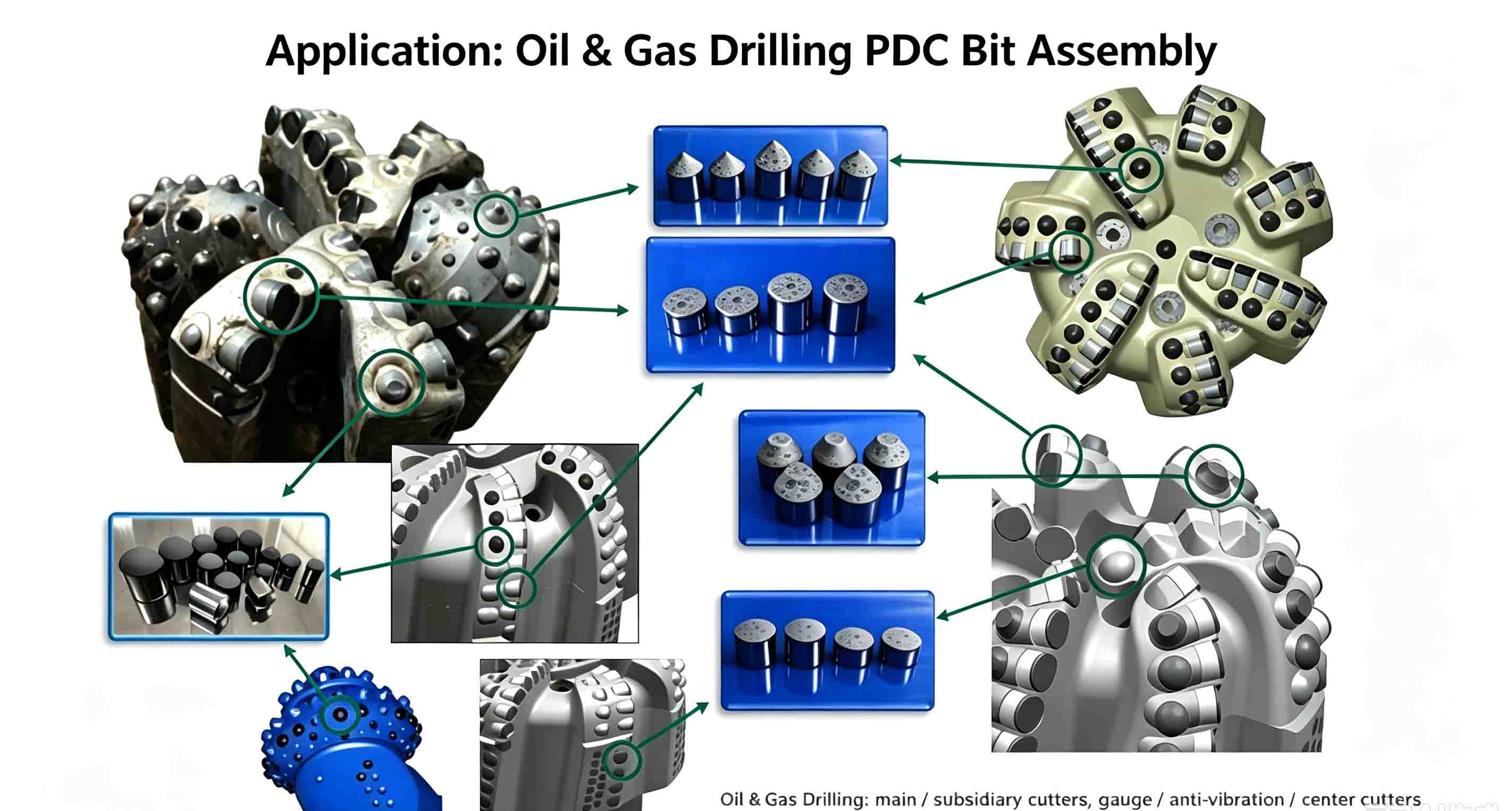

Small-sized PDC drill bits, core drill bits, borehole trimming tools

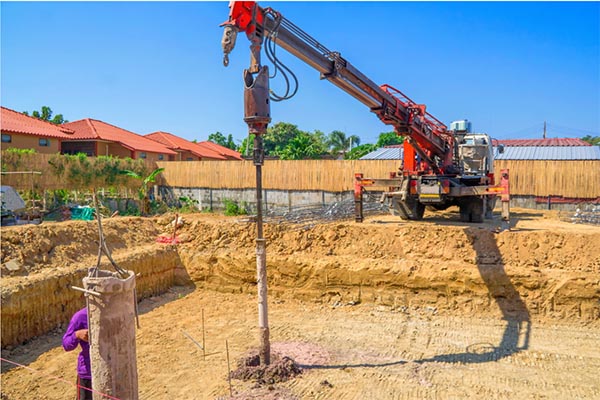

Water Well Drilling

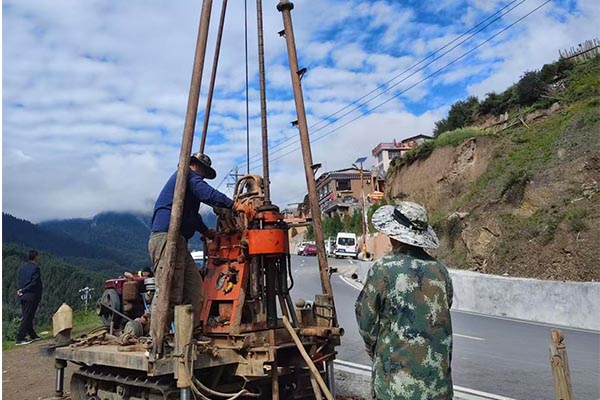

Geological Exploration
Customized Service
- Size Customization: Adjust diameter, overall height and diamond layer thickness to adapt to special drill bit designs
- Chamfer Customization: Provide 30°/45°/60° and double chamfer options to balance impact resistance and wear resistance
- Performance Customization: Adjust diamond grain size and sintering parameters to adapt to soft formations or high-abrasiveness formations
- Surface Treatment: Polished or textured surface treatment to improve cutting efficiency and chip removal capacity
|
Cutter Model |
Diameter/mm |
Total |
Height of |
Chamfer of |
|
S0505 |
4.820 |
4.600 |
1.6 |
0.5 |
|
S0605 |
6.381 |
5.000 |
1.8 |
0.5 |
|
S0606 |
6.421 |
5.560 |
1.8 |
1.17 |
|
S0806 |
8.009 |
5.940 |
1.8 |
1.17 |
|
S0807 |
7.971 |
6.600 |
1.8 |
0.7 |
|
S0808 |
8.000 |
8.000 |
1.80 |
0.30 |
|
S1008 |
10.000 |
8.000 |
1.8 |
0.3 |
|
S1009 |
9.639 |
8.600 |
1.8 |
0.7 |
|
S1013 |
10.000 |
13.200 |
1.8 |
0.3 |
|
S1108 |
11.050 |
8.000 |
2 |
0.64 |
|
S1109 |
11.000 |
9.000 |
1.80 |
0.30 |
|
S1111 |
11.480 |
11.000 |
2.00 |
0.25 |
|
S1113 |
11.000 |
13.200 |
1.80 |
0.30 |
|
S1308 |
13.440 |
8.000 |
2.00 |
0.40 |
|
S1310 |
13.440 |
10.000 |
2.00 |
0.35 |
|
S1313 |
13.440 |
13.200 |
2 |
0.4 |
|
S1316 |
13.440 |
16.000 |
2 |
0.35 |
|
S1608 |
15.880 |
8.000 |
2.1 |
0.4 |
|
S1613 |
15.880 |
13.200 |
2.40 |
0.40 |
|
S1616 |
15.880 |
16.000 |
2.00 |
0.40 |
|
S1908 |
19.050 |
8.000 |
2.40 |
0.30 |
|
S1913 |
19.050 |
13.200 |
2.40 |
0.30 |
|
S1916 |
19.050 |
16.000 |
2.4 |
0.3 |
|
S2208 |
22.220 |
8.000 |
2.00 |
0.30 |
|
S2213 |
22.220 |
13.200 |
2.00 |
0.30 |
|
S2216 |
22.220 |
16.000 |
2.00 |
0.40 |
|
S2219 |
22.220 |
19.050 |
2.00 |
0.30 |
